Touying provides the touying-diagram/touying-reduce functions (synonyms), which add pause, meanwhile, and other animations to CeTZ.

There also is touying-reducer, for which you have to specify the bindings yourself.

Simple Animation​

An example:

#import "@preview/touying:0.8.0": *
#import themes.metropolis: *
#import "@preview/cetz:0.5.2"
#import "@preview/fletcher:0.5.8" as fletcher: node, edge

// cetz and fletcher bindings for touying
#let cetz-canvas = touying-reduce.with(cetz) // new syntax for packages that expose their name
#let fletcher-diagram = touying-reduce.with(fletcher)

#show: metropolis-theme.with(aspect-ratio: "16-9")

// cetz animation
#slide[
Cetz in Touying:

#cetz-canvas({
import cetz.draw: *

rect((0,0), (5,5))

(pause,)

rect((0,0), (1,1))
rect((1,1), (2,2))
rect((2,2), (3,3))

(pause,)

line((0,0), (2.5, 2.5), name: "line")
})
]

// fletcher animation
#slide[
Fletcher in Touying:

#fletcher-diagram(
node-stroke: .1em,
node-fill: gradient.radial(blue.lighten(80%), blue, center: (30%, 20%), radius: 80%),
spacing: 4em,
edge((-1,0), "r", "-|>", `open(path)`, label-pos: 0, label-side: center),
node((0,0), `reading`, radius: 2em),
edge((0,0), (0,0), `read()`, "--|>", bend: 130deg),
pause,
edge(`read()`, "-|>"),
node((1,0), `eof`, radius: 2em),
pause,
edge(`close()`, "-|>"),
node((2,0), `closed`, radius: 2em, extrude: (-2.5, 0)),
edge((0,0), (2,0), `close()`, "-|>", bend: -40deg),
)
]

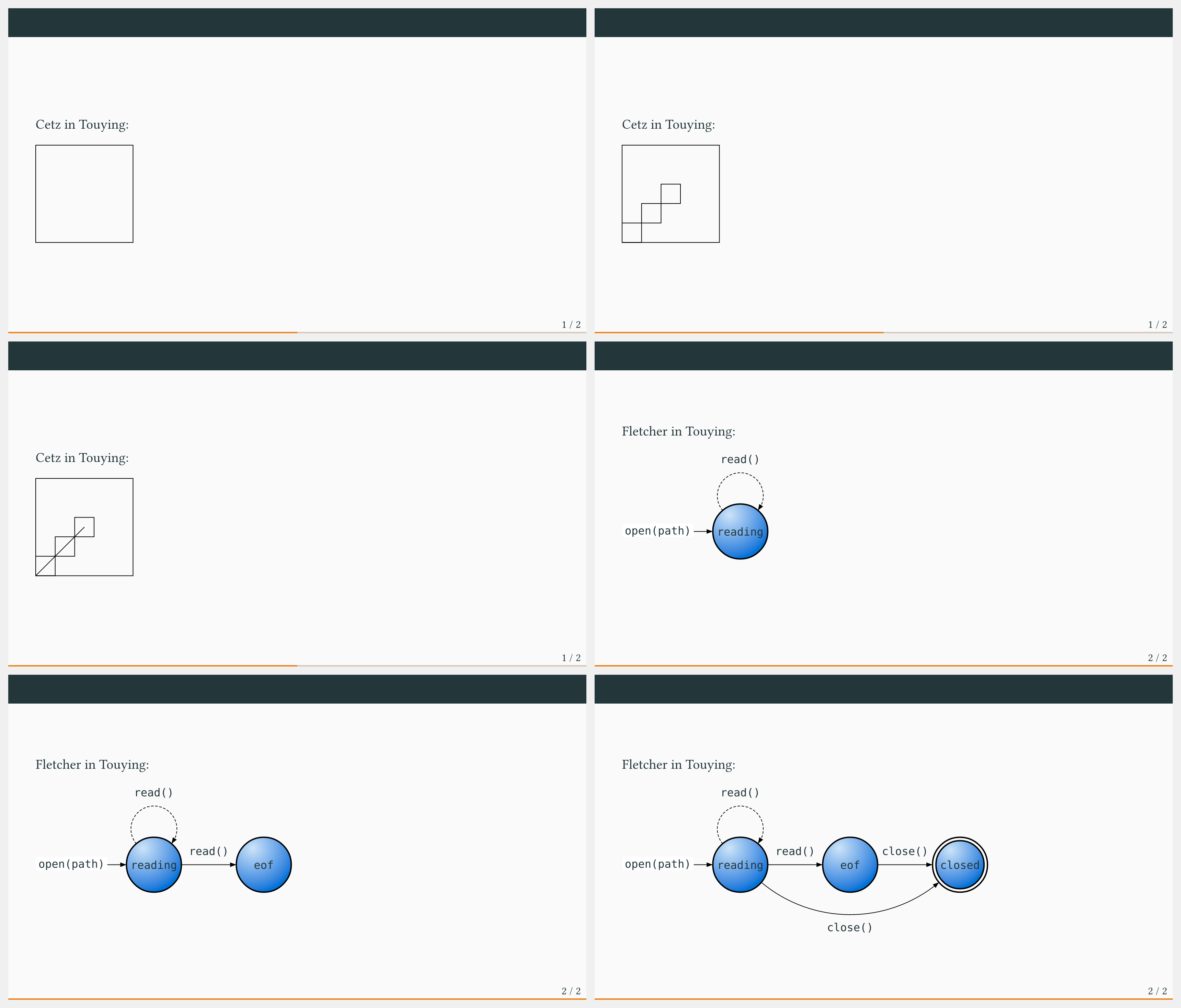

Touying example output

only and uncover​

Similarly we can also use only and uncover. Notice that for Cetz you need to wrap touying's smart animation commands in an array (only(...),) whereas in Fletcher you can write them natively.

#import "@preview/touying:0.8.0": *
#import "@preview/cetz:0.5.2"
#import themes.simple: *
#show: simple-theme.with(aspect-ratio: "16-9")

// cetz bindings for touying
#let cetz-canvas = touying-diagram.with(cetz) // new syntax for packages that expose their name

== Only and Uncover in Cetz

Cetz in Touying in subslide #touying-get-config("subslide")

#cetz-canvas({
import cetz.draw: *

rect((0,0), (5,5))

(uncover("2-3", {
rect((0,0), (1,1))
rect((1,1), (2,2))
rect((2,2), (3,3))
}),)

(only(3, line((0,0), (2.5, 2.5), name: "line")),)
})

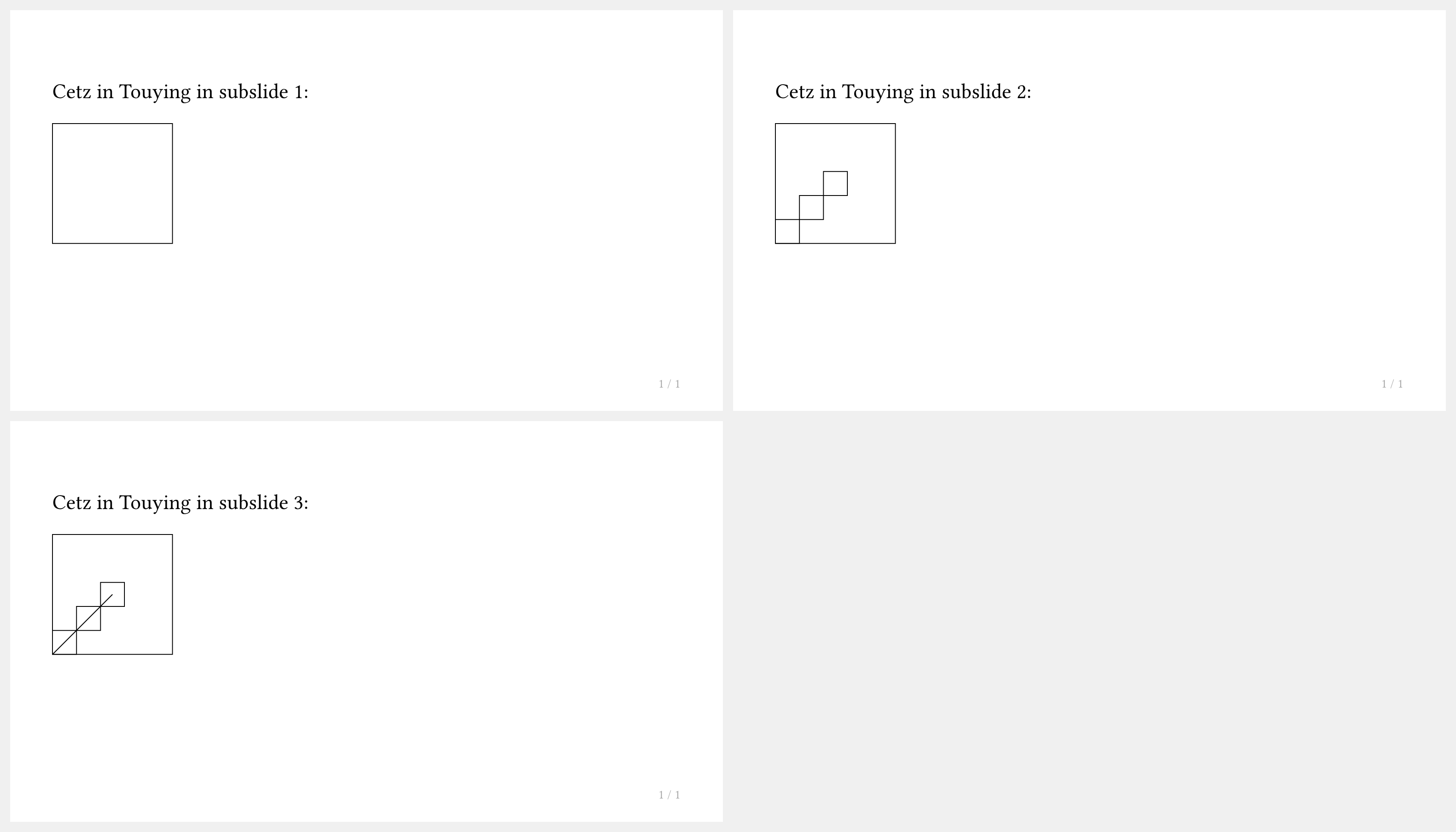

Touying example output

only and uncover with slide self​

We can also pass the slide self and then use the utils methods. You don't need to wrap these in an array. Note: you must count your subslides for this and parse in the correct repeat count.

#import "@preview/touying:0.8.0": *
#import "@preview/cetz:0.5.2"
#import themes.simple: *
#show: simple-theme.with(aspect-ratio: "16-9")

#slide(repeat: 3, self => [
#let (uncover, only, alternatives) = utils.methods(self)

Cetz in Touying in subslide #self.subslide:

#cetz.canvas({
import cetz.draw: *
let uncover = uncover.with(cover-fn: hide.with(bounds: true)) //use cetz' hide function for covering

rect((0,0), (5,5))

uncover("2-3", {
rect((0,0), (1,1))
rect((1,1), (2,2))
rect((2,2), (3,3))
})

only(3, line((0,0), (2.5, 2.5), name: "line"))
})
])
Touying example output
